The TRIAPEX group

Stepping motor driven intermittent ink roll coder

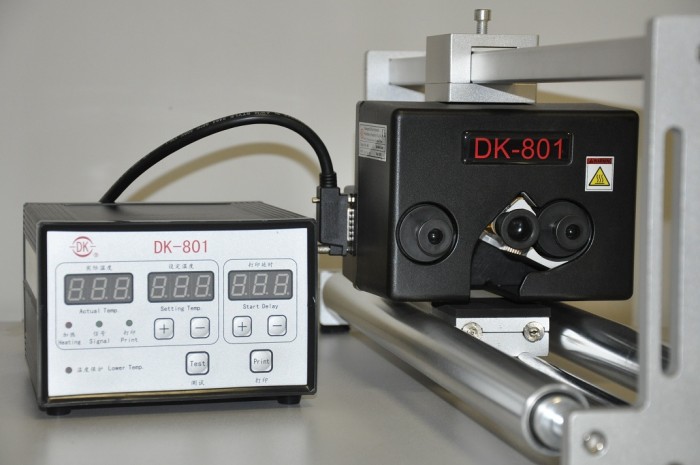

The compact model 801 ink roll coding machine is an intermittent motion coder, easy to operate and install.
Compare with hot stamp coders, 801 ink roll coding machine greatly simplifies the consumables change, decreases the downtime and saves the cost per print.
The LED display and industrial film keys are easy to operate and monitor the temperature and delay of printing.
The intelligent temperature-protect function lets this machine run only when reaching the proper temperature.
The ink roll preheating system largely decreases the downtime.

Continuous motion ink roll coder
1. Synchronized with packing machines
2. Easy installation
3. Wide printing area

Model 1100A ink roll coding machine is suitable for all kinds of horizontal and vertical packing machines to automatic print production date, lot/ batch number and other related information. The mounting bracket of this machine is to be custom built to meet the various mounting position for the coder on different packing machines.

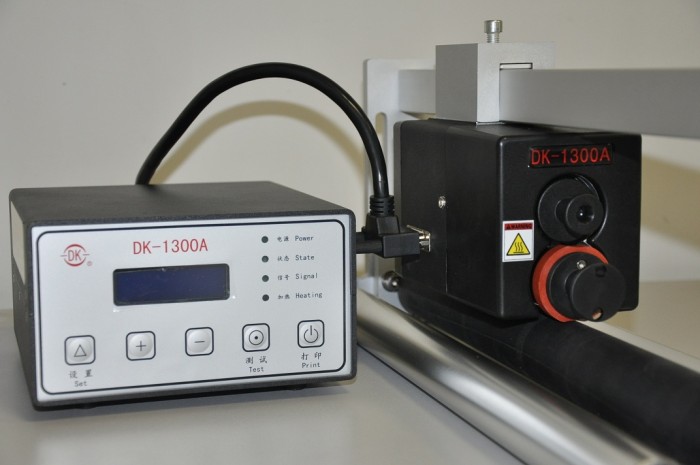

Electrical driven continuous motion ink roll coder
The 1300A ink roll coding machine will provide imprint on all common packaging materials at rates up to 600 prints per minute and at film speed up to 50 meters per minute with below features:
1. Fault output signal
2. Stable printing
3. Less mechanism consume
4. Compact size
5. Simple installation
Driven by the inside motor, model 1300A adopts a patented friction technology to guarantee the high legible printing. With stable quality, it can automatically trace the packing speed to make sure the coherence of the printing position.

Electrical driven continuous motion ink roll coder

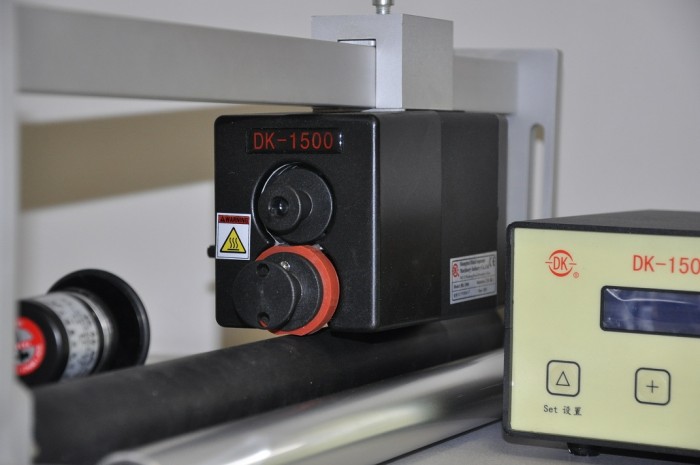

Model 1500 is the most advanced type of high speed ink roll coding machine. It is driven by high speed motor and can satisfy the request for higher speed and more precise print position.
1. Synchronized with packing machine
2. Easy installation
3. With encoder
4. Speed: 1200 times/min
5. Fault output signal
6. Stable printing
7. Less mechanism consume
8. Compact size

Model 1500 is an electronic continuous motion coder designed to print an area as described in the Machine Specifications. The model 1500 will product imprint on all common packaging materials at rates up to 1200 prints per minute and at film speed up to 70 meters per minute with below features:

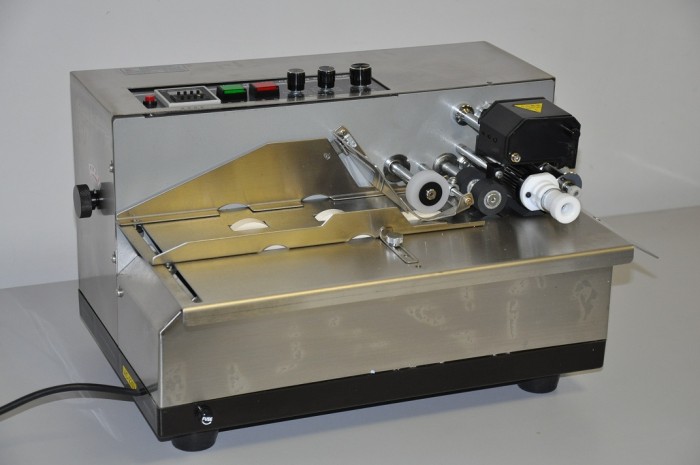

Motor driven tabletop ink roll coder
Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.
Adopt hot ink roll, fast dry, legible and rub resistant printing. With multi functional print wheel, maxmum 5 lines have (with) 2mm, 2.5mm, 3mm for your choice.
Fitting for printing by paper, cardboard, plastic tags and labels.
