Stepping motor driven hot stamping coding machine
Model 703 coder is the latest hot stamping coding machine, winning several patents for an innovational structure and control system.
This compact coder assures easy operation and installation. The design of cassette simplifies the foil change, greatly decreases the downtime.
The control system of model 703 embodies the safety, intelligence, convenience as below:
The driving and heating voltage is 24V DC, which is totally safe for the operators. Support the AC power from 110V to 220V.
Less than 1mm prints gap greatly reduces the foil waste.
Alarm of the foil break, missprinting, foil shortage.
Up to 120 ppm printing speed can satisfy the majority of intermittent packing machines.
The LED display and industrial film keys are easy to operate. Convenient Chinese/English exchange and menu setting support various applications.

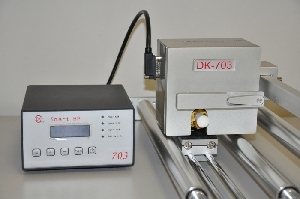

Hot stamp coder model 703
-
Description:
Print area 35 mm*3lines Print speed up to 120prints/min Print lines T type?3lines?maximum 20 characters/line Font Size T-type character 3mm(Height)*1.5mm,2.0mm,2.5mm(Width) Control box LCD display Foil size 20-35m?Width?*100-200m?Length? Electrical requirements AC85V—AC260 V?50/60 Hz, 2A, 130W Environmental requirements 4?-40?; 10%-95% humidity Weight Print Head- 4.0kg Control Box- 1.5kg
