The TRIAPEX group

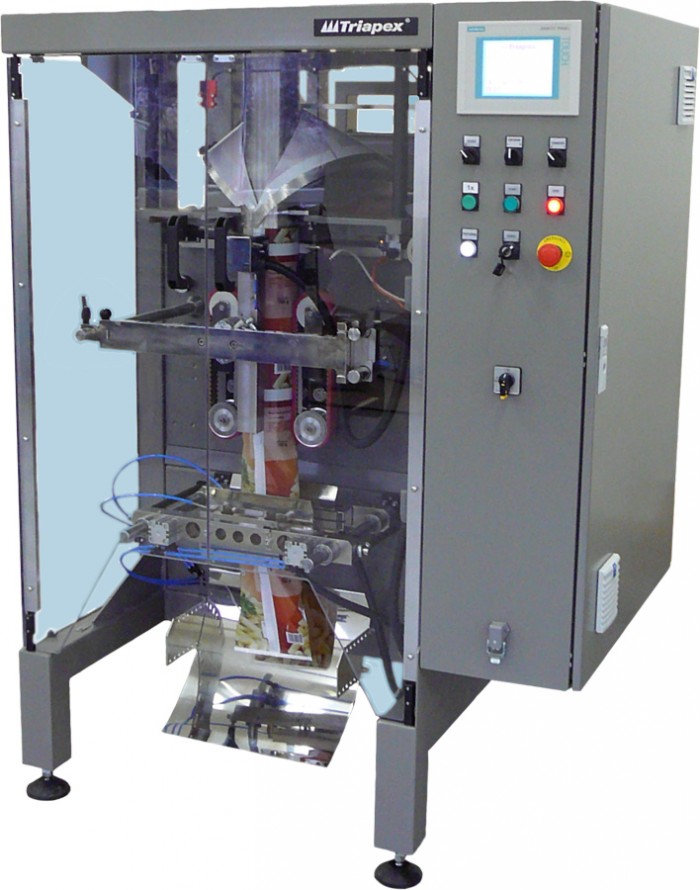

Highly variable higher class vertical hose packaging machine.
Tech. speed max. 80/min

Variations: Standard

Dimensions: Height: 1700 mm
Width: 1150 mm
Length: 1700 mm
Weight: 750 kg

Tube: Circular 40 – 160 mm
Square 40x20 – 160x100 mm

Bags: Length max. 400 mm
Width max. 242 mm

Highly variable lower class vertical hose packaging machine.
Tech. speed max. 60/min

Variations: Standard, one tube, multi tube, cross jaws, combined drives.

Dimensions: Height: 1500 mm
Width: 900 mm
Length: 1550 mm
Weight: 470 kg

Tube: for one lane version:
Circular 10 – 129 mm - pillow bags
Circular 10 – 32 mm - cross bags
Tubes for multi lane version:
Circular 10 – 32 mm - pillow bags

Bags: Length max. 300 mm
Width max. 200 mm

Packaging machine designed to pack small piece products and sample packages
Three seal and four seal bags
Tech. speed max. 66/min

Variations: Standard

Dimensions: Height: 1140 mm
Width: 860 mm
Length: 1442 mm
Weight: 250 kg

Bags: Length max. 130 mm
Width max. 105 mm

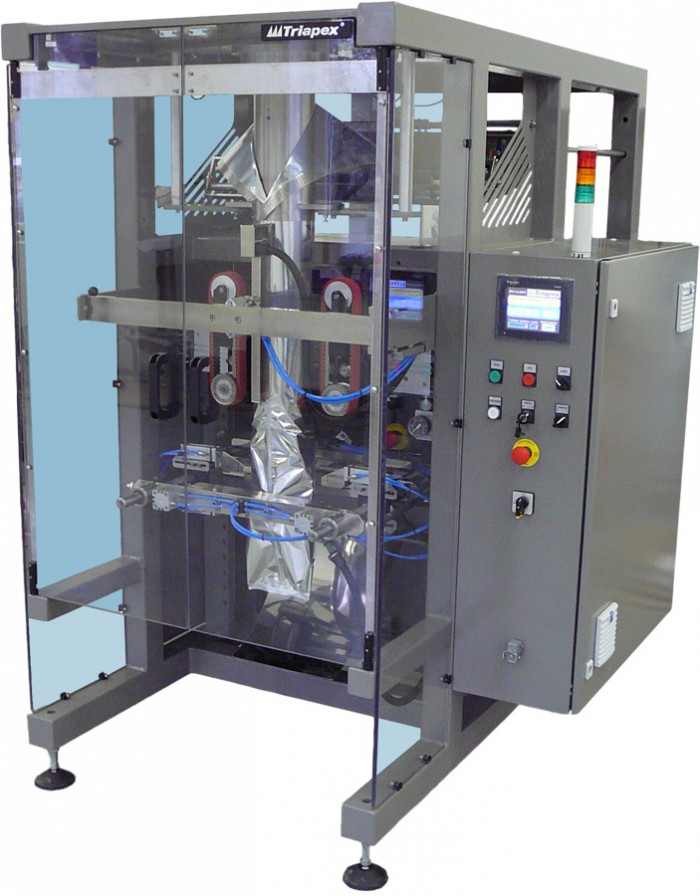

Very fast highly variable higher class vertical hose packaging machine.
Servo drives.
Tech. speed max. 120/min

Variations: Standard, flat bottom, stabilopack

Dimensions: Height: 1700 mm
Width: 1150 mm
Length: 1700 mm
Weight: 750 kg

Tube: Circular 40 – 160 mm
Square 40x20 – 160x100 mm

Bags: Length max. 400 mm
Width max. 242 mm

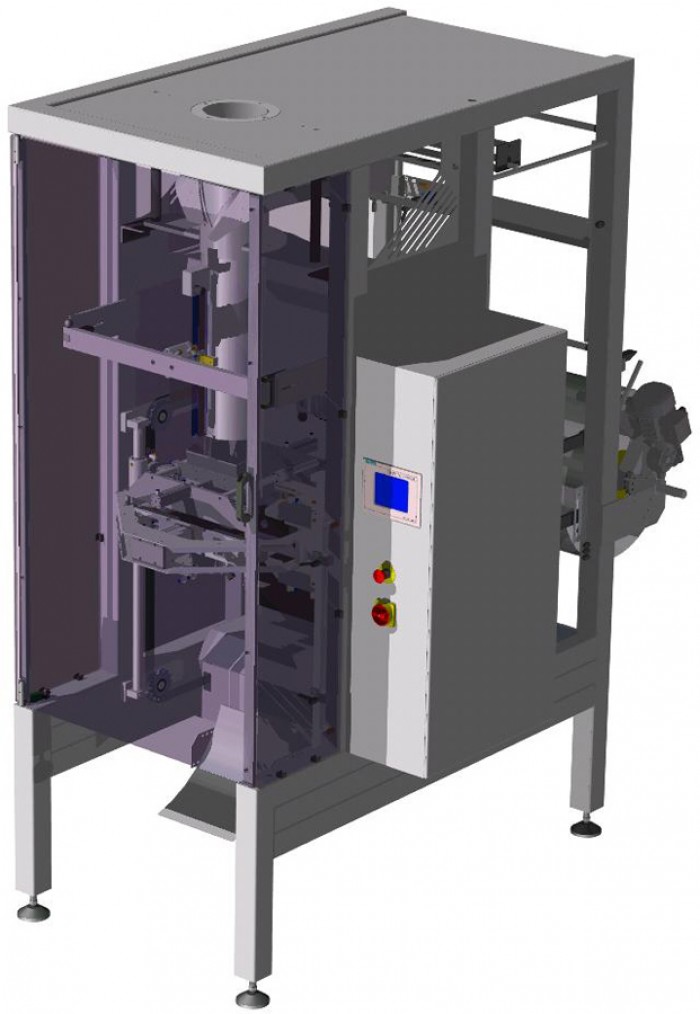

Vertical packaging machine for large volumes and collated packages.
Tech. speed max. 40/min

Variations: Standard, stabilopack, flat bottom.

Dimensions: Height: 2000 mm
Width: 1150 mm
Length: 2000 mm
Weight: 850 kg

Tube: Circular 60,3 – 190 mm
Square 34 x 60,3 – 190 x 120 mm

Bags: Length max. 800 mm
Width max. 300 mm

Vertical packaging machine specialized in fruit and vegetables packing.
Tech. speed max. 20/min

Variations: Standard, corner sealing, shape cuts.

Dimensions: Height: 2000 mm
Width: 1150 mm
Length: 2000 mm
Weight: 850 kg

Tube: Circular 70 – 190 mm

Bags: Length max. 600 mm
Width max. 300 mm

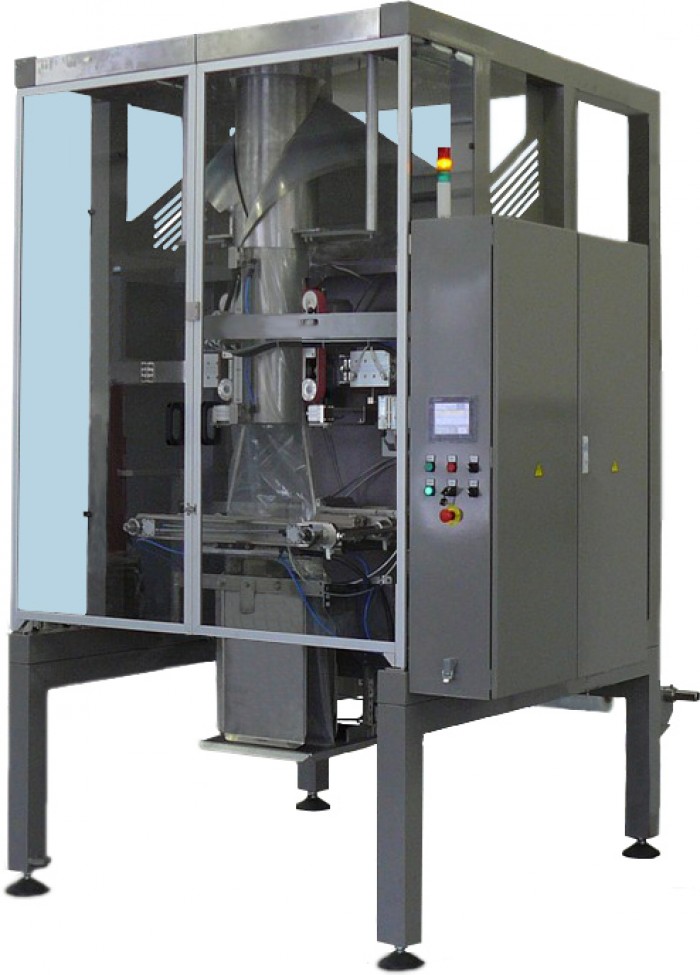

Vertical packaging machine for large volumes.
Tech. speed max. 15/min

Variations: Standard, corner sealing, shape cuts.

Dimensions: Height: 2320 mm
Width: 1560 mm
Length: 2000 mm
Weight: 800 kg

Tube: Circular 220 – 300 mm

Bags: Length 200 - 1000 mm
Width 240 - 470 mm

Very fast packaging machine for large volumes.
Tech. speed up to 25/min

Variations: Standard, corner sealing, holes for fingers.

Dimensions: Height: 2320 mm
Width: 1560 mm
Length: 2000 mm
Weight: 800 kg

Tube: Circular 50 – 320 mm
Square 28 x 50 – 182 x 320 mm

Bags: Length 100 - 1000 mm
Width 79 - 500 mm

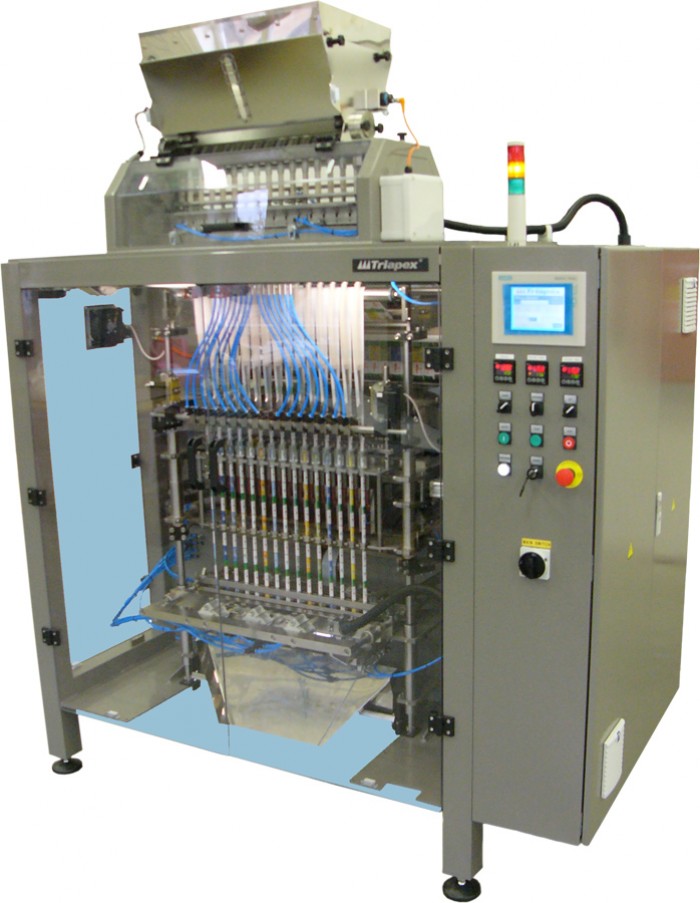

Highly variable vertical multilane packaging machine.

Tech. speed max. 60/min

Variations: Standard, multi tube, combined drives

Dimensions: Height: 2000 mm
Width: 1850 mm
Length: 2550 mm
Weight: 2000 kg

Tube: Circular 15xШ10 – 4xШ40 mm

Bags: Length max. 180 mm

Width max. 64 mm

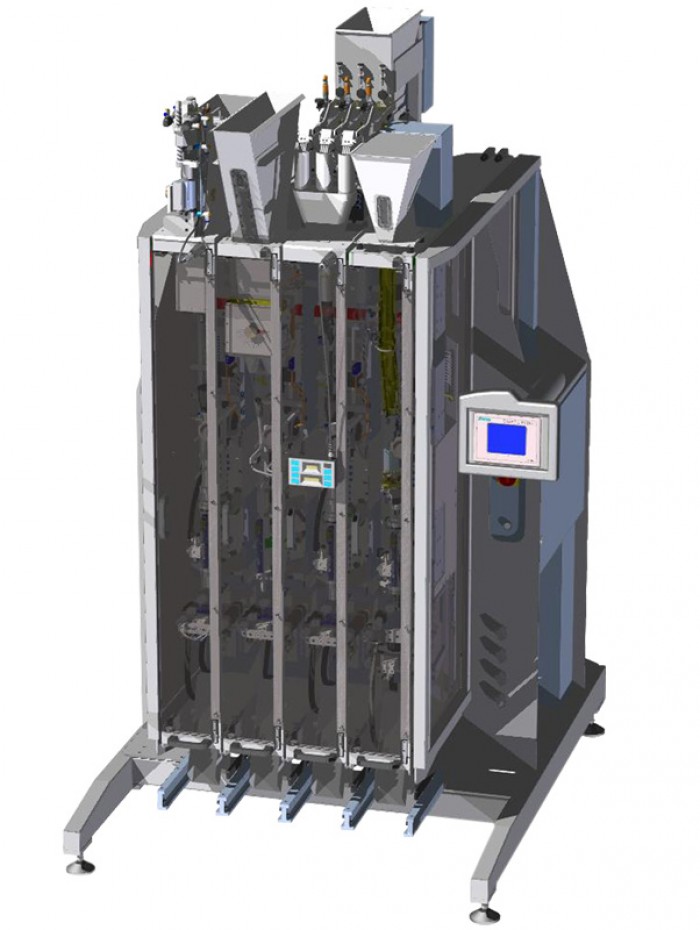

Highly variable modular vertical packaging machine.
Unique design
Simply grows with your requirements
Tech. speed max. 45/min/modul

Variations: Standard, multi tube.

Dimensions: Height: 2200 mm
Width: 210 mm / modul
Length: 1400 mm
Weight: 250 kg / modul

Tube: Circular 6x6 – 2x40 mm / 1 wide modul
Circular: 3x6 – 1x40 mm / 1 slim modul

Bags: Length max. 180 mm
Width max. 64 mm
