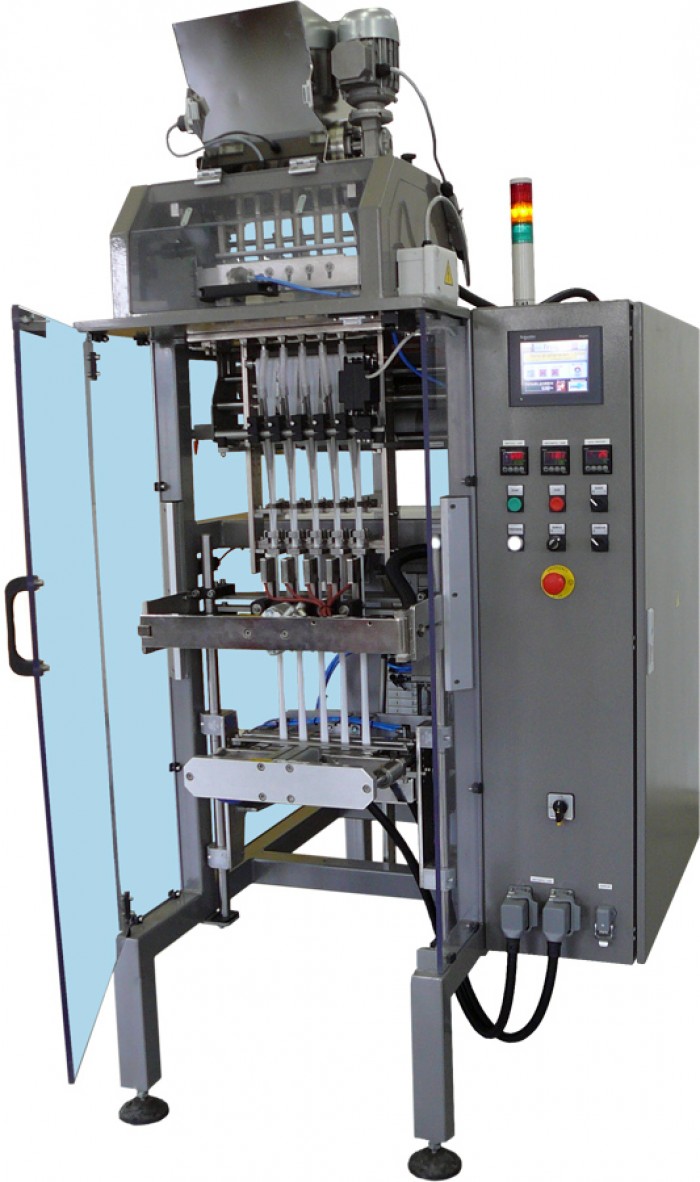

Highly variable lower class vertical hose packaging machine.
Tech. speed max. 60/min
Variations:
Standard, one tube, multi tube, cross jaws, combined drives.
Dimensions:
Height: 1500 mm
Width: 900 mm
Length: 1550 mm
Weight: 470 kg
Tube:
for one lane version:
Circular 10 – 129 mm - pillow bags
Circular 10 – 32 mm - cross bags
Tubes for multi lane version:
Circular 10 – 32 mm - pillow bags
Bags:
Length max. 300 mm
Width max. 200 mm
