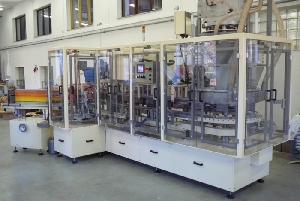

Cartoning machine KS

Operators stack flat cardboard blanks into a magazine of the cartoning machine. Cardboard blanks are picked one by one by the machine using vacuum and loaded into carriers.
In the first phase, the bottom of a box is folded and bonded by hot melt adhesive which guarantees quick and firm adhesion.
In the next phase, boxes are filled with a required amount of product using volumetric dosing equipment. Hopper is automatically feeded by a supply conveyor.
In the last phase the top part of a box is folded and bonded. Cartoning machine is equiped with a printer (bar codes, dates etc). Finished boxes are transported by a conveyor for further processing.
Speed: Standard: 35 doses / minute
Maximum: up to 100 doses / minute

  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
