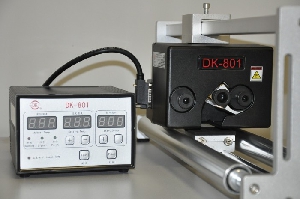

Ink roll coder 801

Stepping motor driven intermittent ink roll coder
The compact model 801 ink roll coding machine is an intermittent motion coder, easy to operate and install.
Compare with hot stamp coders, 801 ink roll coding machine greatly simplifies the consumables change, decreases the downtime and saves the cost per print.
The LED display and industrial film keys are easy to operate and monitor the temperature and delay of printing.
The intelligent temperature-protect function lets this machine run only when reaching the proper temperature.
The ink roll preheating system largely decreases the downtime.

  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Description:

    Print area: 40 mm*3lines Print speed: up to 120 prints/min Print lines: T type?3lines?maximum 20 characters/line Font size: T-type character 3.5mm (Height)*1.5mm,2.0mm,2.5mm (Width) Control box: LED display Ink roll size: ?35X32(mm) Electrical requirements: AC220 ±10V?50/60 Hz, 2A, 130W Working temperature: 4?-40?, 10%-95% humidity Weight: printhead- 4.0kg Control box- 1.5kg
