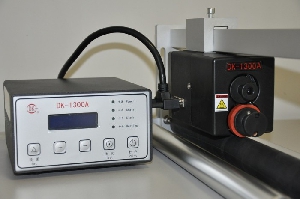

Ink roll coder model 1300A

Electrical driven continuous motion ink roll coder
The 1300A ink roll coding machine will provide imprint on all common packaging materials at rates up to 600 prints per minute and at film speed up to 50 meters per minute with below features:
1. Fault output signal
2. Stable printing
3. Less mechanism consume
4. Compact size
5. Simple installation
Driven by the inside motor, model 1300A adopts a patented friction technology to guarantee the high legible printing. With stable quality, it can automatically trace the packing speed to make sure the coherence of the printing position.

  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Description:

    Printing lines T-type (axial) up to 13lines, max. 15characters per line R-type (radial) up to 8lines, max. 13characters per line Font size T-type 1.5 mm,2.0 mm,2.5 mm R-type 3.0mm ,3.5 mm, 4.5 mm (special letters and font can be custom-made) Cycle rate up to 1200 prints/minute Surface speed up to 70 meters/minute Pouch length ?38mm(4-up printer) ?75mm(2-up printer) Type of Printhead Right-hand (Clockwise) Left-hand (Counter-clockwise) Control box LCD display Ink roll required ?35*32 mm, Electrical AC100V—AC230 V,50/60 Hz Power 140W,2A Fuse Environmental operating temperature 4°C-38°C Relative humidity 10%-95% Weight printhead 4kg Control box 2kg Dimensions printhead: 94mm*100mm*166mm (L*W*H) Control box: 180mm*190mm*96mm (L*W*H)
