Continuous motion ink roll coder
1. Synchronized with packing machines
2. Easy installation
3. Wide printing area
Model 1100A ink roll coding machine is suitable for all kinds of horizontal and vertical packing machines to automatic print production date, lot/ batch number and other related information. The mounting bracket of this machine is to be custom built to meet the various mounting position for the coder on different packing machines.

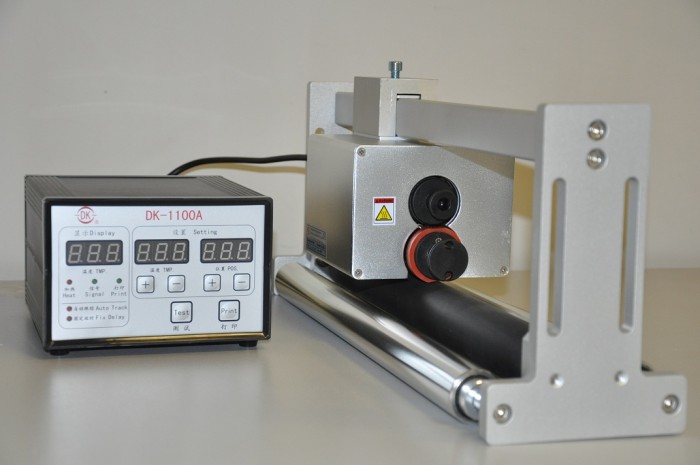

Ink roll coder model 1100A
-
Description:
Print area Axial 40mm Radial 40.5mm Printing lines T-type 13lines Max. 20 character s/line R-type 10lines Max. 13 characters/line Type T-type 1.5, 2.0, 2.5, 3.0mm(W)*3.5mm(H) R-type 3.5mm(W)*3.5, 4.5, 5.5mm(H) Cycle rate Up to 300 cycles / minute Surface speed Up to 40 meters / minute Min. print space 70mm for 2-up Type Holder (select one) 38mm for 4-up Type Holder Type rotation direction clockwise (Fixed) (select one) counter clockwise (Fixed) Temperature controller type Digital display Ink Roll 35*32mm Electrical AC 220V±10V, 50/60Hz, 1Ph, 130W, 2A Environmental operating Minimum 4°C (40°F) Temperatures Maximum 40°C (100°F) Relative humidity Minimum 10% Maximum 95%(non-condensing) Weight printhead: 2.0kg Control box: 1.0kg Dimensions printhead: 120mm*100mm*140mm(L*W*H) Control box: 180mm*160mm*125mm(L*W*H)
